Network

The network system can be configured in multiple ways depending on your network setup. By default, the Streamer acts as the initiator of the connection and the Player acts as a responder. Also, a single link is used by default. In this setup, the receive port of the Player must be accessible by the Streamer.

Settings

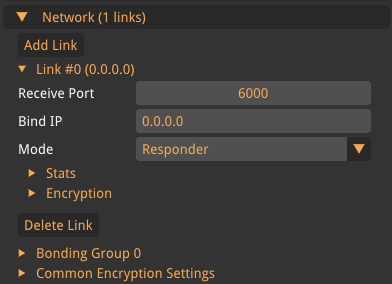

remote streamer network
Figure 1. Network settings overview.
Bind IP

The IP address to bind to when opening the network socket. If nothing or 0.0.0.0 is specified, the address will be assigned automatically by the operating system.

Bind Device

Linux only. This means that all traffic associated with this link will go through the specified interface. Be aware that this also effectively bypasses any configured network routes on the system.

Mode

The link mode to use. An Initiator link will try to initiate the connection. A Responder link will listen and then reply to traffic from an Initiator link. More technically, this means that an Initiator link can be behind a NAT and the Responder link must be on a public IP. This restriction can be circumvented by using encryption and routing through a WireGuard server, see Encryption.

Receive Port

The network port used to listen to incoming traffic.

Destination Addr.

The address of the corresponding Responder link. Can be either a domain name or an IP address.

Destination Port

The receive port of the corresponding Responder link.

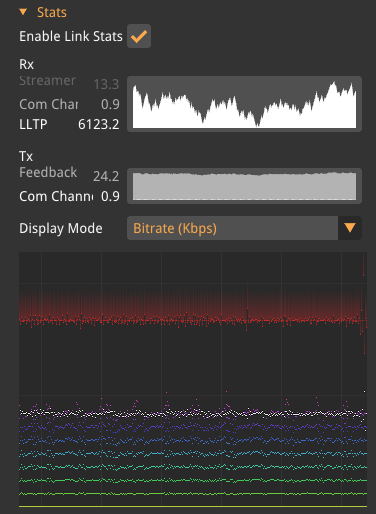

remote streamer link stats
Figure 2. Link Stats.

If you enable link stats you get the following stats for each link.

The first section shows the incoming and outgoing bandwidth categorized by the traffic type.

The second section of the link stats shows a graph where each column is a frame and each pixel in that column is the relative timing of a packet in that frame and the top red pixel shows when the first packet of the next frame arrived.

Encryption

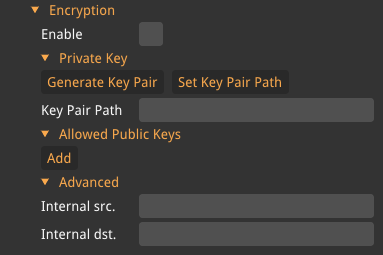

remote streamer encryption
Figure 3. Overview of the encryption settings.

The encryption tab configures encryption and authentication of the traffic that the application sends using the WireGuard protocol.

To set up encryption, first configure the local key pair, then add the public keys of each peer you want to allow communication with. If traffic is relayed through a WireGuard server, the Internal src./dst. settings under Advanced must also be configured.

Enable

Turns encryption on or off for this link.

Private Key

Generate Key Pair

Opens a save dialog to generate a new private/public key pair and store it on disk.

Set Key Pair Path

Opens a file dialog to load an existing key pair from disk.

Key Pair Path

Path to the key pair file. Can be set directly or filled in by the buttons above.

Public Key

Read-only view of the public key derived from the loaded key pair. Share this with peers so they can authenticate traffic from this application.

Allowed Public Keys

A list of public keys for the remote endpoints that are allowed to communicate with this application. Use Add to append a new entry and Remove to delete one. Up to 16 keys can be added.

Initiator links only use the first public key in the list.

Advanced

Internal src.

When relaying traffic through a WireGuard server, set this to the internal IP address of the local endpoint as configured in the WireGuard server.

Internal dst.

When relaying traffic through a WireGuard server, set this to the internal IP address of the remote endpoint as configured in the WireGuard server.

P2P

P2P enables a link to automatically transition to a peer-to-peer connection if possible. This is useful in order to reduce network latency if connected over a WireGuard server. This has no effect if the connection is already peer-to-peer.

Enable

Enables the P2P negotiation

STUN Server

STUN server used to detect the client WAN IP and port. The default server stun.l.google.com:19302 is freely provided by Google and used for WebRTC in Google Chrome.
